Ref : 1246145 - Movelite WireFree 35 RTS
The WireFree curtain motor solution offering all the essential features; suitable for all projects
The WireFree curtain motor solution offering all the essential features; suitable for all projects
Application | ||
---|---|---|
Curtains | ||
Technology | Warranty | |
RTS technology | 5 Years |
Product benefits
Reliable, robust, and minimalistic:
• A battery powered curtain motor solution with the essential functions.
• Suitable for residential and commercial projects.
• Curtain weight up to 35kg [Max Curtain Track length is 6m].
• Rechargeable battery (1 charge every 6 months).
• USB C charging port.
• Manual override in case of power outage.
Easy Installation:
• The motor is battery operated; no wiring or electrican required
• Motor can be installed on the right or left side of the track
Smart, Simple & Convenient:

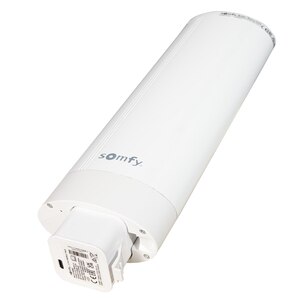

• A removable battery pack makes it easy to recharge
• Movelite WireFree RTS is compatible with TaHoma switch and Connexoon Window RTS hub. Control via the TaHoma by Somfy app or voice (Google Assistant/Amazon Alexa)
Compatible Charging Accessories:
[9028922] Li-ion USB-C Wirefree Charger AU
[9028565] USB C 20CM EXTENSION CABLE*
[9028564] MAGNETIC ADAPTOR USB C CHARGER*
[9028563] MAGNECTIC RIGID CABLE USB C CHARGER*
Charging considerations:
•Maximum distance between motor and charger is 4m.
•Magnetic Adaptor [9028564] does not sit flush against the battery pack. Do not use excessive force to push the adaptor into the USB C charging port.
•Please allow an extra 20 minutes of charging time when using the USB C magnetic charging accessories [9028565, 9028564 & 9028563].
Other documents & links
Others
Technical information
Technology |
|
---|---|
Radio Frequency | RTS - 433.42 MHz |
Range in open field | 200m |
Capacity of memory | 12 |
Coding | Rolling code 16 million of possibilities |
Range in house | 20m |
Electrical |
|
---|---|
Compatible accessories | Compatible with Glydea Accessories |
Antenna | Intergrated |
Consumption during operation | 35 W |
Minimum voltage | 12 V |
Maximum Voltage | 16.8 V |
Nominal Voltage / Frequency | Rechargeable 14.8V Li-ion battery pack |
Mechanical |
|
---|---|
Nominal Speed | 105 rpm |
Nominal Torque | 0.6 Nm |
Standard |
|
---|---|
Approval | RCM |
Protection Index | IP30 |
Other |
|
---|---|
Information | Compatible with Somfy Charger [9028922] - Sold Separately. Maximum track length is 6m. |
Thermal time | 7 mn |
Noise level (according to Somfy measures) | 41 dBA |
Working temperature | 0°C - 60 °C |
