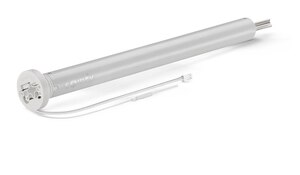

Ref : 1245937 - Sonesse2 28 WF Zigbee
SONESSE 28 WIREFREE ZIGBEE 1.1/20
A smart, compact WireFree motor designed for narrow internal windows.
Application | ||
---|---|---|
Interior blinds | ||
Technology | Warranty | |
Zigbee | 5 Years |
Product benefits
Robust & Easy:
- Bi-directional feedback (Know the motors position and battery level) anytime, anywhere.
- Simple and error free commissioning thanks to TaHoma pro application.
- A compact smart motor suitable for narrow windows.

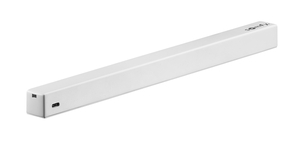

- Requires Zigbee external battery pack (sold separately)
- Adjustable speed (increments of 1rpm) through TaHoma pro application.
- Strategically positioned programming buttons and LED to ease installation and to provide a visual feedback throughout the commissioning process.
Convenient & Smart:
- Whisper quiet, seamless operation
- USB-C Fast charge for optimised charging experience.
- Magnetic Charging accessories available (Sold separately).
- Thin motor head to reduce light gap.
- Interchangeable motor covers [White, Black & Grey] to compliment fabric & decor.
- Integrated motor heads plate (dependent on the bracket system) to ease of installation.
- Compatible with TaHoma switch & Apple Homekit.
- Compatible with the Zigbee WireFree Solar Panel
- Compatible with other Zigbee 3.0 brands thanks to TaHoma switch.
Other documents & links
Install
Others
- SONESSE 28 Zigbee WF Short Guide.pdf Download File
- SONESSE 28 WF Zigbee Instruction manual.pdf Download File
- Zigbee Mesh Network Summary Download File
- Zigbee WireFree Compatibility Matrix Download File
- Li-ion Zigbee Charger - Technical Data Sheet Download File
- [1245937] Sonesse 28 WF Zigbee + External Battery Pack TDS - April 2025 Download File
Technical information
End product |
|
---|---|
End product type | Tubular short motor with Zigbee technology |
Technology |
|
---|---|
Radio Frequency | 2.4 GHz (Zigbee) MHz |
Number of cycles per day | 1 cycles |
Range in house | 7m (Extendable with Zigbee Repeaters) |
Electrical |
|
---|---|
Antenna | External Antenna 17.5cm |
Consumption in standby mode | 0.002 W |
Consumption during operation | 7 W |
Rated current | 0.65 A |
Nominal Voltage / Frequency | Zigbee External Battery pack required (Sold separately) |
Mechanical |
|
---|---|
Capacity of the limit switch unit | 200 turns |
Type of limit switch unit | Electronic & bi-directional radio |
Type of head | ROUND |
Nominal Speed | 20 rpm |
Nominal Torque | 1.1 Nm |
Standard |
|
---|---|
Approval | RCM |
Protection Index | IP 30 (for indoor use only) |
Insulation class | III |
Dimension |
|
---|---|
Length (L1) | 355 mm |
Basic crown for tube diameter | TUBE Min Ø 26.6 mm |
Weight | 0.38 Kg |
Overall length (L3) | 355 mm |
Other |
|
---|---|
Thermal time | 15 mn |
Noise level (according to Somfy measures) | 45 (at nominal speed) dBA |
Working temperature | 0°C to 60°C °C |
